The Lansdowne, Birmingham

Rising above Birmingham's busy Five Ways Gateway, The Lansdowne marks a significant moment in the city's evolution towards high-quality Build-to-Rent living. With 206 light-filled apartments, wide-spanning amenity spaces and generous two-storey glazed openings, the development demanding a facade strategy that could elevate both the architectural intent and the resident experience.

While the building itself is defined by its precast concrete structure, the glazing and facade design approach required TECHNAL's specialist input in areas such as interface detailing, system integration, thermal performance strategy and buildability within a highly constrained city-centre site.

Designing for Large Apetures and a Strong Architectural Grid

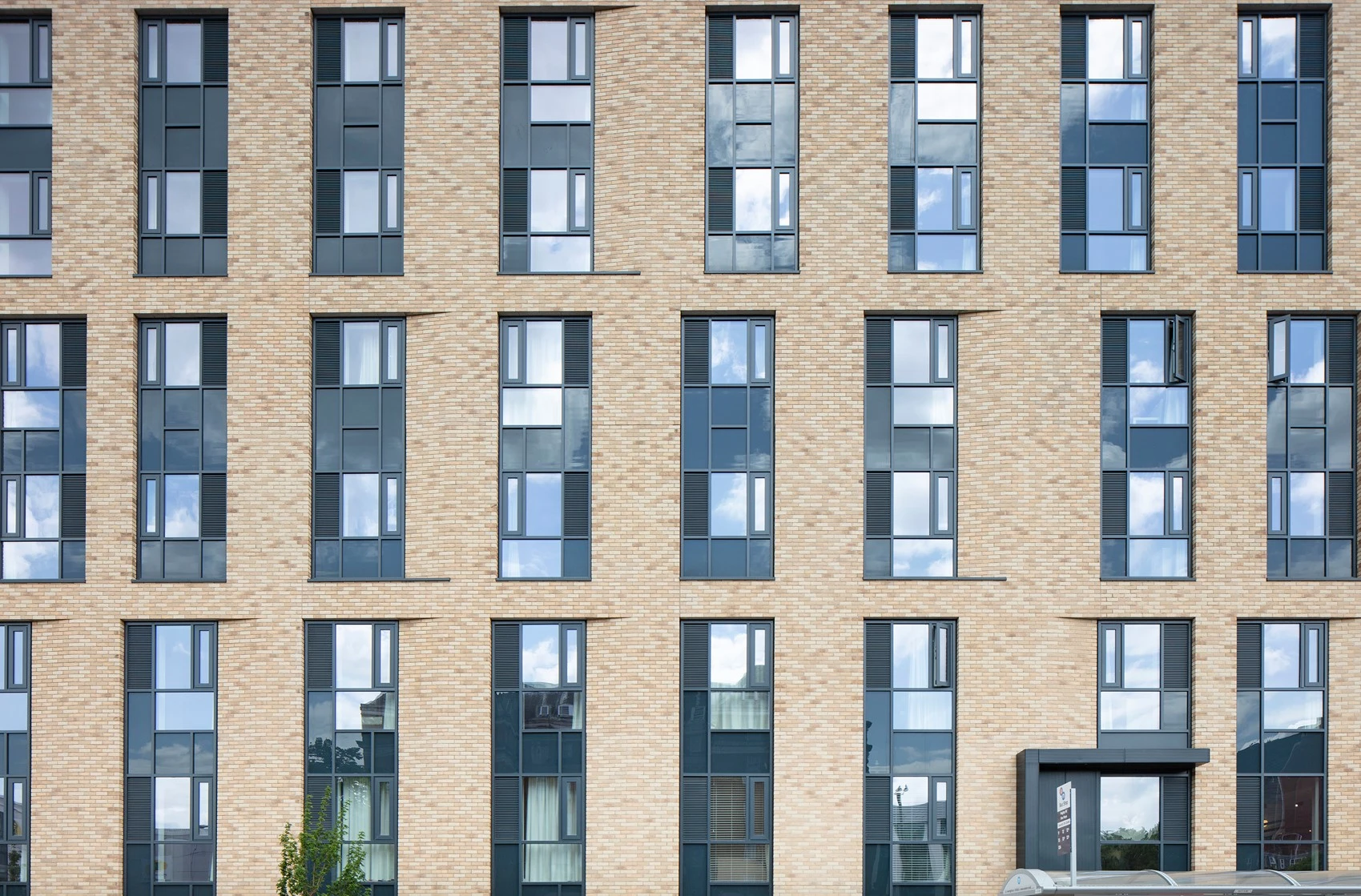

The Lansdowne's visual identity is shaped by tall, precast concrete panels designed with two-storey window apetures. This architectural rhythm creates impressive daylight conditions for residents - but also introduces significant technical challenges.

TECHNAL supported the project through:

• Early tolerance mapping, ensuring the facade strategy could absorb the inherent constraints of precast manufacturing

• How to reconcile a rigid precast module with the need for movement, tolerance and long-term durability

• How to preserve the clean, vertical rhythm envisioned by the architect

By working closely with the design team, we ensured the glazed elements aligned perfectly with the precast grid, maintaining the architectural intent while ensuring performance and buildabilty.

Intelligent Interface Engineering for Precast Construction

Precast construction offers speed and quality benefits, but it places stringent requirements on facade integration. For The Lansdowne, every apeture, fixing point and junction had to be considered long before the first panel arrived on site.

TECHNAL supported the project through:

• Early tolerance mapping, ensuring the facade strategy could absorb the inherent constraints of precast manufacturing

• Interface detailing that allowed for predicatable installation sequencing and a reliable weathering strategy

• Collaboration with the precast contractor to confirm connection points, sequencing and panel-to-glazing alignment

This early coordination reduced risks during construction and helped maintain programme certainty - a critical factor on site with only a single access route and no room for error

Delivering Daylight, Comfort and Wellbeing

At the heart of the Build-to-Rent model is resident experience. The Lansdowne's expansive glazing helps:

• Maximise natural daylight in deep floorplates

• Create long internal views, enhancing perceived space and wellbeing

• Enable residents to experience the skyline of Edgbaston and Birmingham

TECHNAL's role was to ensure that this architectural generosity was matched by long-term performance considering:

• Thermal comfort across orientations

• Acoustic protection on one of Birmingham's busiest arterial roads

• Solar gain management to deliver comfort without compromising aesthetics

The result is a facade that supports everyday quality of life - quiet, bright, comfortable and visually refined.

Construction on a Challenging Urban Site

Situated on a tight corner plot with only one point of access, The Lansdowne required exceptional logistical planning. Off-site precast fabrication accelerated construction, but also increased the need for precision in the facade strategy.

TECHNAL contributed design expertise to support:

• Just-in-time installation sequencing

• Working safely and efficiently within tight clearances

• Maintaining facade continuity even as the frame rose at speed

A robust weathering plan ensured that internal fit-out could begin early, despite some of the harshest winter conditions on record during the early stage of the build.

A Regenerative Approach with Community Impact

The development replaces a derelict car park with a high-quality residential landmark - elevating one of the key gateways into the city. Throughout construction, the contractor and project team made efforts to:

• Minimise disruption through careful phasing and off-site fabrication

• Reduce vehicle movements and emissions in a sensitive, high-traffic location

• Engage local charities, schools and community groups

The facade plays its part in this regeneration story, contributing to a building that is visually uplifted, sustainability minded, and built to last.

A New Standard for Build-to-Rent Design in Birmingham

The Lansdowne demonstrates how a collaborative and thoughtful facade strategy can unlock the full potential of a modern Build-to-Rent development.

With its elegant rhythm of precast concrete and glazing, generous daylight levels, and intelligent detailing suited to demanding site conditions, the project shows what is possible when architectural ambition is supported by early-stage technical insight.

For future projects involving large panelised structures, complex interfaces or urban constraints, TECHNAL's facade consultancy and design support can help achieve the same alignment of architecture, performance, and buildability - without compromise.
