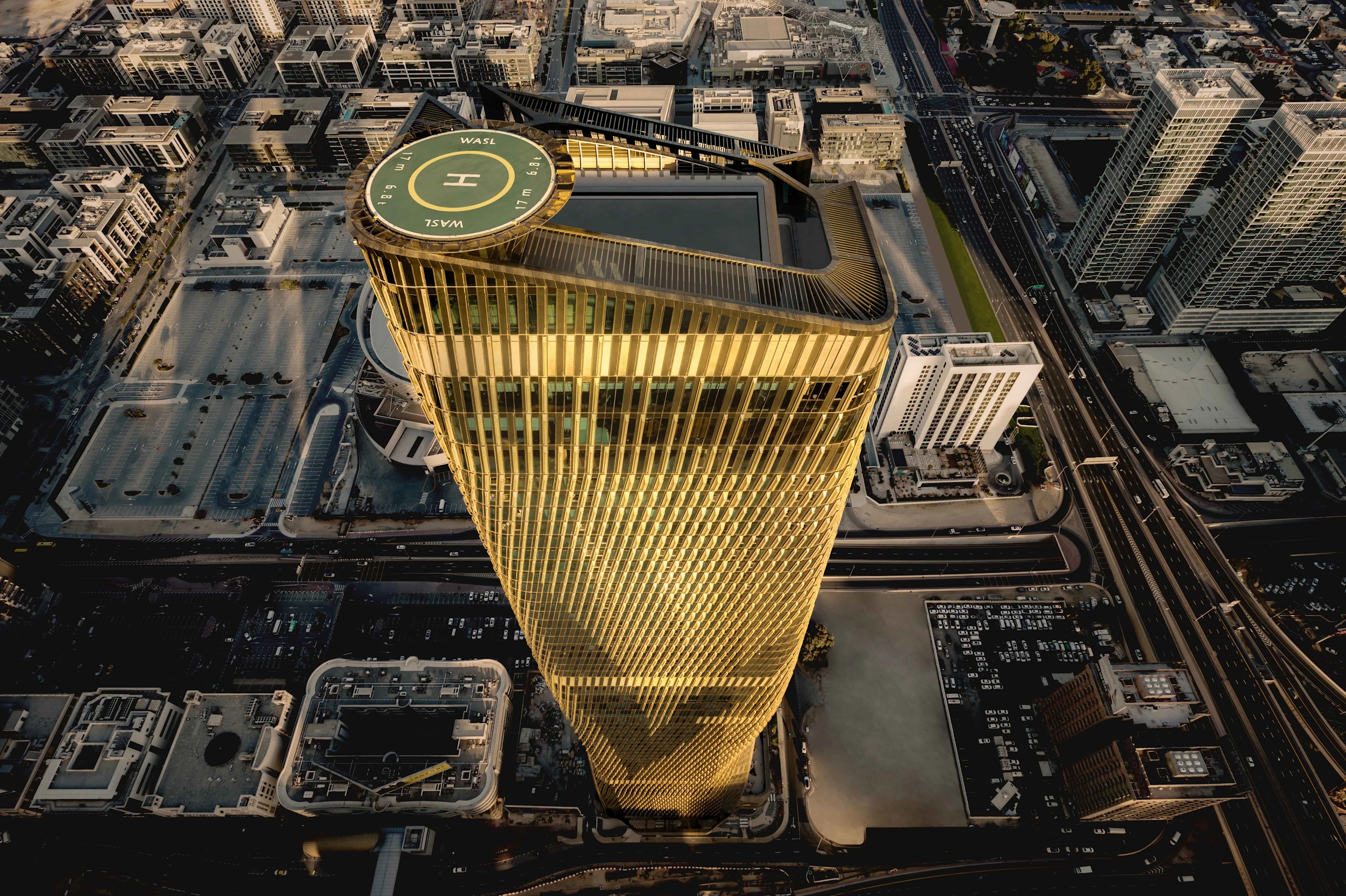

On Sheikh Zayed Road, Wasl Tower doesn’t follow the rules of repetition. It twists. And with every shift, the façade must follow.
This is where architecture becomes engineering.
Because in a tower where no two floors are identical, the façade cannot rely on standard systems. It must be developed. Tested. Refined. And resolved at every level.
TECHNAL, working alongside façade specialists, delivered a bespoke unitised curtain wall system engineered specifically for this geometry. Designed from the ground up to respond to movement.
Each module is unique. Factory-assembled for precision, aligned to the tower’s rotation, and installed as part of a continuous, controlled envelope. This unitised approach ensures consistency, speed, and performance, even within one of the most complex façades in the region.
At the core of the system lies cold-bent glazing, allowing the glass to follow the tower’s curvature without breaking the visual continuity. The result is a façade that reads as fluid, despite its complexity.
This inner layer works in dialogue with the tower’s external ceramic fins. Angled and calibrated to manage solar exposure, they reduce heat gain while maintaining daylight and views, responding directly to the intensity of the desert climate.
Integrated LED lighting extends this performance into the night, transforming the façade into a dynamic presence on the skyline, where structure and light become one.
Behind the expression, performance remains constant. Thermal efficiency. Airtightness. Wind resistance. Acoustic comfort. All maintained across a façade that refuses repetition.
Mandarin Oriental Downtown tower is not defined only by its form. It is defined by how that form is made possible.
A façade not simplified to fit the design but engineered to deliver it.
Project Information
Location: Sheikh Zayed Road, Dubai U.A.E Architect: UNStudio Facade Contractor: Technical Glass & Aluminum Developer: WASL Aluminium Systems Used: Custom TECHNAL Unitized Curtain Wall, Stick curtain Wall, and Hinged Door.
